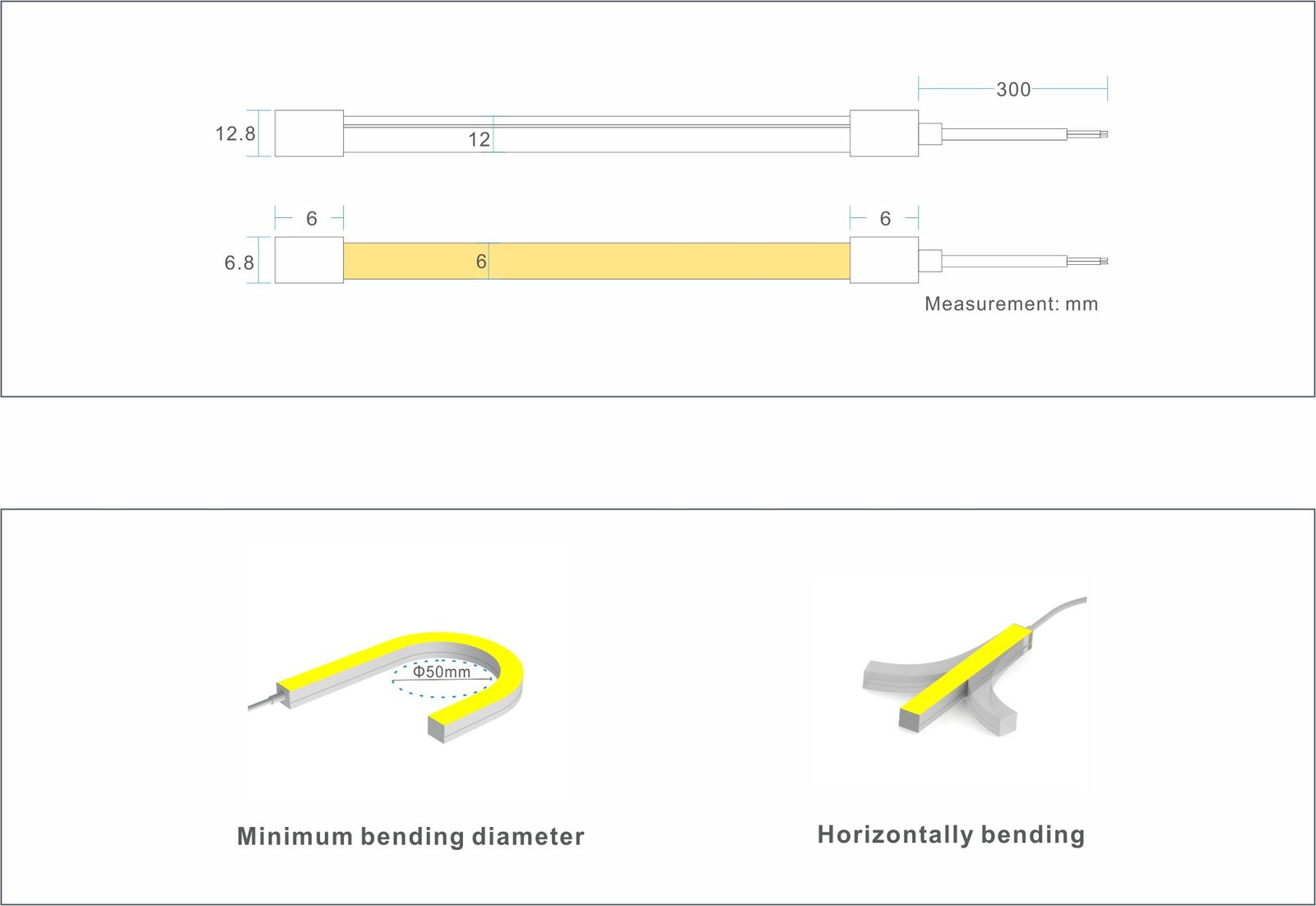

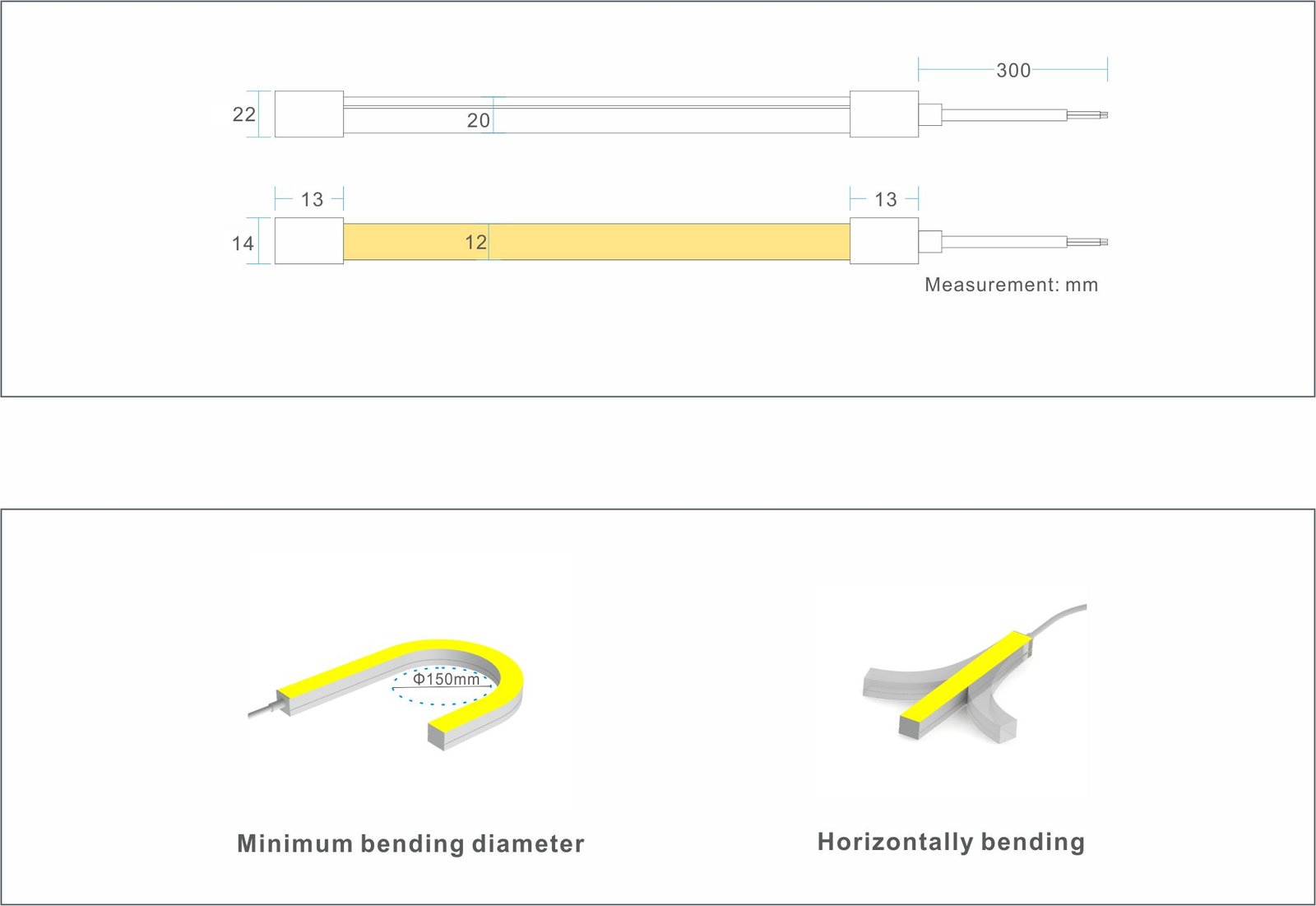

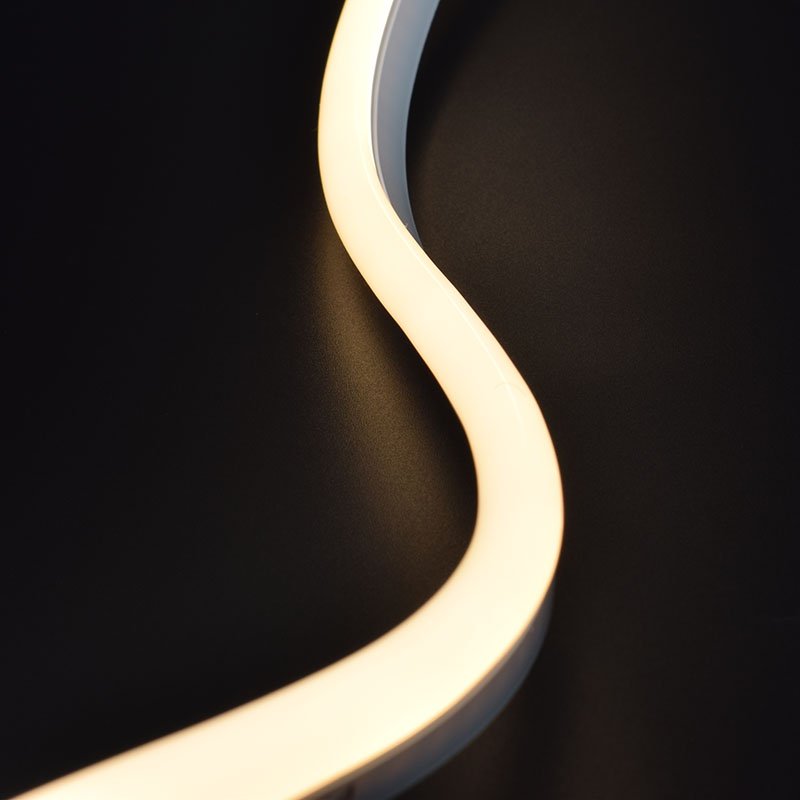

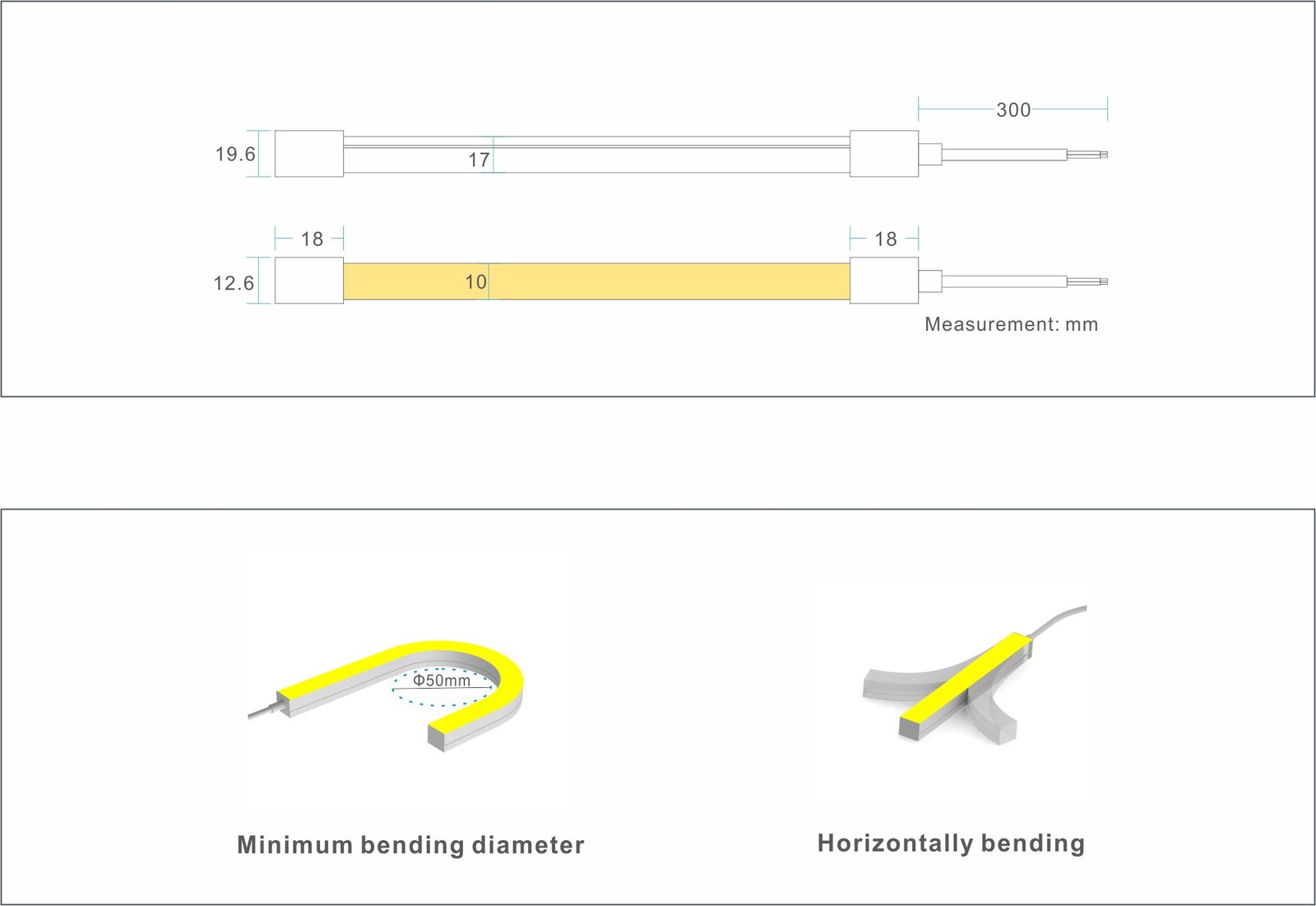

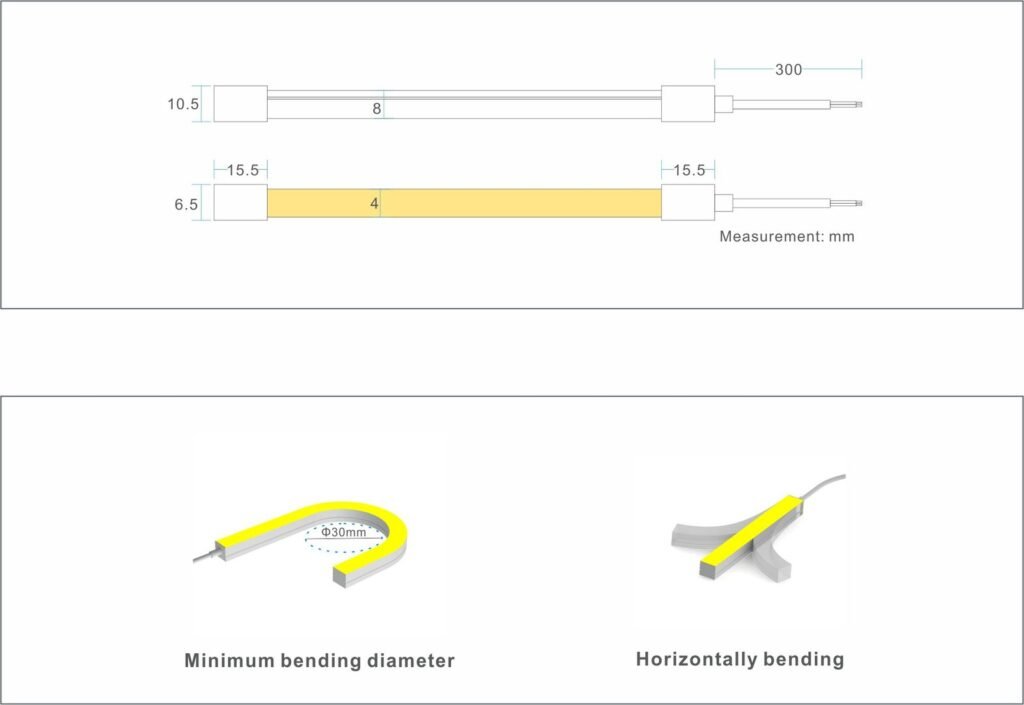

Horizontal(Side) Bend Neon Flex
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(6.0watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 203 |
| Red(620-630nm） | 78 |
| Green(520-530nm） | 207 |
| Blue(460-470nm） | 44 |
| Yellow(580~590nm) | 55 |
| Pink | 180 |
| Orange Amber(600~610nm) | 75 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K |
154 | 299 |
| Red(620-625nm） | 82 | 160 |
| Green(515-525nm） | 240 | 398 |
| Blue(460-465nm） | 30 | 52 |
| Yellow( 585~595nm) | 61 | 125 |
| Pink | 78 | 145 |
| Orange Amber (605~615nm) | 90 | 172 |
| CCT Adjustable | 158 | 289 |
| RGB | 73 | 127 |
| RGBW | 220 | 415 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K |
19 | 13 |
| Red(620-625nm） | 25 | 17 |
| Green(515-525nm） | 19 | 13 |
| Blue(460-465nm） | 19 | 13 |
| Yellow( 585~595nm) | 25 | 17 |
| Pink | 19 | 13 |
| Orange(605~615nm) |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 160 | 311 |
| Red(620-625nm） | 70 | 150 |
| Green(515-525nm） | 190 | 356 |
| Blue(460-465nm） | 38 | 71 |
| Yellow( 585~595nm) | 59 | 116 |
| Pink | 74 | 148 |
| Orange Amber(605~615nm) | 60 | 114 |
| CCT Adjustable | 161 | 332 |
| RGB | 82 | 144 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 19 | 13 |
| Red(620-625nm） | 25 | 17 |
| Green(515-525nm） | 19 | 13 |
| Blue(460-465nm） | 19 | 13 |
| Yellow( 585~595nm) | 25 | 17 |
| Pink | 19 | 13 |
| Orange Amber(605~615nm) | 25 | 17 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 322 | 623 |
| Red(620-625nm） | 140 | 275 |
| Green(515-525nm） | 276 | 540 |
| Blue(460-465nm） | 71 | 131 |
| Yellow( 585~595nm) | 127 | 246 |
| Pink | 232 | 452 |
| Orange Amber(605~615nm) | 130 | 240 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) | Lumen(15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 163 | 328 | 441 |
| Red(620-625nm） | 68 | 145 | 192 |
| Green(515-525nm） | 195 | 369 | 466 |
| Blue(460-465nm） | 35 | 65 | 93 |
| Yellow( 585~595nm) | 15 | 30 | 37 |
| Pink | 74 | 149 | 196 |
| Orange Amber(605~615nm) | 161 | 357 | 152 |
| CCT Adjustable | 161 | 337 | 152 |
| RGB | 77 | 152 | 180 |
| RGBW | 130 | 240 | 350 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) | Maxium running length (watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 25 | 17 | 12 |
| Red(620-625nm） | 33 | 18 | 12 |
| Green(515-525nm） | 25 | 17 | 12 |
| Blue(460-465nm） | 25 | 17 | 12 |
| Yellow( 585~595nm) | 33 | 18 | 12 |
| Pink | 25 | 17 | 12 |
| Orange Amber(605~615nm) | 33 | 18 | 12 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) | Lumen(15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 175 | 345 | 478 |
| Red(620-625nm） | 69 | 148 | 197 |
| Green(515-525nm） | 213 | 404 | 513 |
| Blue(460-465nm） | 40 | 74 | 103 |
| Yellow( 585~595nm) | 63 | 125 | 156 |
| Pink | 81 | 162 | 218 |
| Orange Amber(605~615nm) | 70 | 132 | 180 |
| CCT Adjustable | 175 | 362 | 509 |
| RGB | 78 | 145 | 181 |
| RGBW | 140 | 260 | 360 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) | Maxium running length (15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 25 | 17 | 12 |
| Red | 33 | 18 | 12 |
| Green | 25 | 17 | 13 |
| Blue | 25 | 17 | 12 |
| Pink | 25 | 17 | 12 |
| Orange Amber | 33 | 18 | 12 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 227 | 455 |
| Red(620-625nm） | 111 | 222 |
| Green(515-525nm） | 240 | 398 |
| Blue(460-465nm） | 51 | 102 |
| Yellow( 585~595nm) | 74 | 148 |
| Pink | 228 | 455 |
| Orange Amber (605~615nm) | 404 | 207 |
| CCT Adjustable | 242 | 483 |
| RGB | 122 | 243 |
| RGBW | 230 | 460 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 19 | 13 |
| Red(620-625nm） | 25 | 17 |
| Green(515-525nm） | 19 | 13 |
| Blue(460-465nm） | 19 | 13 |
| Yellow( 585~595nm) | 25 | 17 |
| Pink | 19 | 13 |
| Orange(605~615nm) |
Input Voltage: DC24V
IP rating:IP67
Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) | Lumen(15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K (standard) |
156 | 307 | 432 |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K (LUX PRO) |
275 | 530 | 750 |
| Red(620-625nm） | 74 | 155 | 205 |
| Green(515-525nm） | 198 | 373 | 473 |
| Blue(460-465nm） | 35 | 70 | 93 |
| Yellow(585~595nm) | 16 | 30 | 41 |
| Pink | 75 | 148 | 199 |
| Orange Amber (605~615nm) | 60 | 110 | 160 |
| CCT Adjustable | 167 | 354 | 476 |
| RGB | 86 | 160 | 200 |
| RGBW | 109 | 219 | 305 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) | Maxium running length (15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K(standard) |
27 | 17 | 12 |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K(LUX PRO) |
20 | 12 | 8 |
| Red(620-625nm） | 35 | 18 | 12 |
| Green(515-525nm） | 27 | 17 | 12 |
| Blue(460-465nm） | 27 | 17 | 12 |
| Yellow(585~595nm) | 35 | 18 | 12 |
| Pink | 27 | 17 | 12 |
| Orange Amber (605~615nm) | 35 | 18 | 12 |
| RGB | / | 13 | / |
| RGBW | / | / | 10 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) | Lumen(15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 154 | 286 | 395 |
| Red(620-625nm） | 56 | 123 | 172 |
| Green(515-525nm） | 181 | 341 | 426 |
| Blue(460-465nm） | 32 | 61 | 86 |
| Yellow(585~595nm) | 50 | 103 | 127 |
| Pink | 66 | 132 | 176 |
| Orange Amber(605~615nm) | 55 | 104 | 148 |
| CCT Adjustable | 142 | 291 | 403 |
| RGB | 70 | 132 | 161 |
| RGBW type A | 90 | 162179 | 255 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) | Maxium running length (15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 27 | 17 | 14 |
| Red | 35 | 23 | 18 |
| Green | 27 | 17 | 14 |
| Blue | 27 | 17 | 14 |
| Orange Amber | 35 | 23 | 18 |
| Pink | 27 | 17 | 14 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) | Lumen(15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 350 | 670 | 960 |
| Red(620-625nm） | 160 | 310 | 435 |
| Green(515-525nm） | 300 | 580 | 825 |
| Blue(460-465nm） | 57 | 140 | 180 |
| Yellow(585~595nm) | 160 | 310 | 450 |
| Pink | 160 | 500 | 720 |
| Orange(605~615nm) | 130 | 240 | 340 |
| CCT Adjustable | 370 | 710 | 1035 |
| RGB | 185 | 330 | 450 |
| RGBW | 270 | 520 | 750 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) | Maxium running length (15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 27 | 17 | 12 |
| RedRed(620-625nm） | 35 | 18 | 12 |
| Green(515-525nm） | 27 | 17 | 12 |
| Blue(460-465nm） | 27 | 17 | 12 |
| Yellow(585~595nm) | 35 | 18 | 12 |
| Pink | 27 | 17 | 12 |
| Orange Amber(605~615nm) | 35 | 18 | 12 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) | Lumen(15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 255 | 432 | 617 |
| Red(620-625nm） | 120 | 220 | 300 |
| Green(515-525nm） | 185 | 390 | 495 |
| Blue(460-465nm） | 53 | 95 | 128 |
| Yellow(585~595nm) | 110 | 205 | 293 |
| Pink | 180 | 340 | 480 |
| Orange Amber(605~615nm) | 90 | 172 | 245 |
| CCT Adjustable | 251 | 489 | 693 |
| RGB | 112 | 209 | 284 |
| RGBW | 157 | 293 | 413 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) | Maxium running length (15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 27 | 17 | 12 |
| Red(620-625nm） | 35 | 18 | 12 |
| Green(515-525nm） | 27 | 17 | 12 |
| Blue(460-465nm） | 27 | 17 | 12 |
| Yellow(585~595nm) | 35 | 18 | 12 |
| Pink | 27 | 17 | 12 |
| Orange Amber(605~615nm) | 35 | 18 | 12 |
| RGB | / | 13 | / |
| RGBW | / | / | 11 |
Input Voltage: DC24V
IP Rating:IP67
Maxium running length for CV strip is 5 meters.
| Color/CCT | Lumen(15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K |
660 |
| Red(620-625nm） | 284 |
| Green(515-525nm） | 632 |
| Blue(460-465nm） | 149 |
| Yellow( 585~595nm) | 195 |
| Pink | 581 |
| Orange Amber (605~615nm) | 273 |
| CCT Adjustable | 650 |
| RGB | 375 |
| RGBW | 518 |
| Maxium running length for CC Typpe(meter) | Maxium running length (15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K |
12 |
| Red(620-625nm） | 12 |
| Green(515-525nm） | 12 |
| Blue(460-465nm） | 12 |
| Yellow( 585~595nm) | 12 |
| Pink | 12 |
| Orange Amber(605~615nm) |
DMX512 Neon Flex
Input Voltage: DC24V
IP rating:IP67
Maxium running length for CV strip is 5 meters.

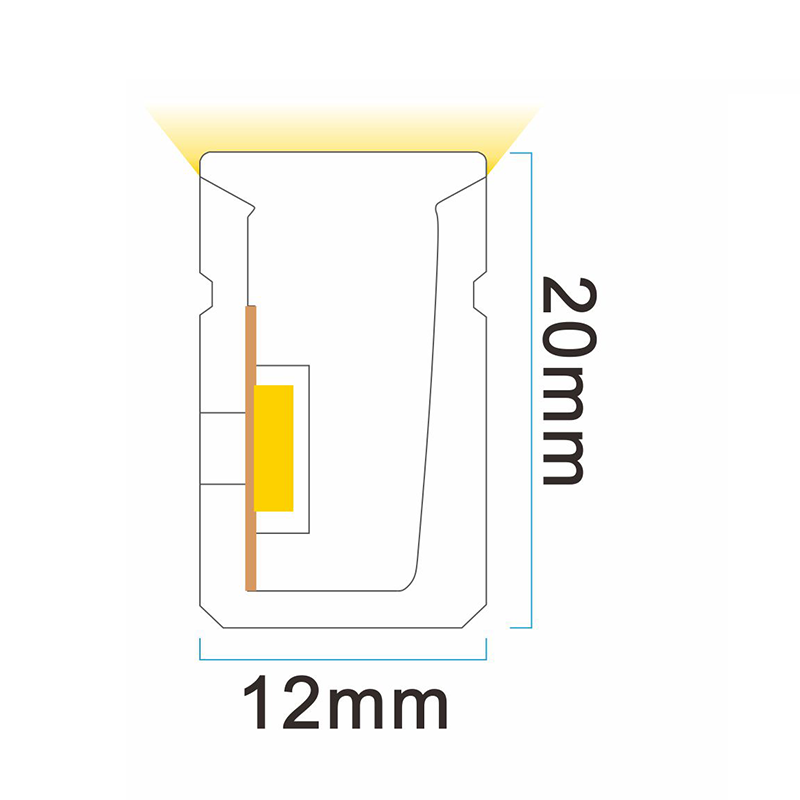

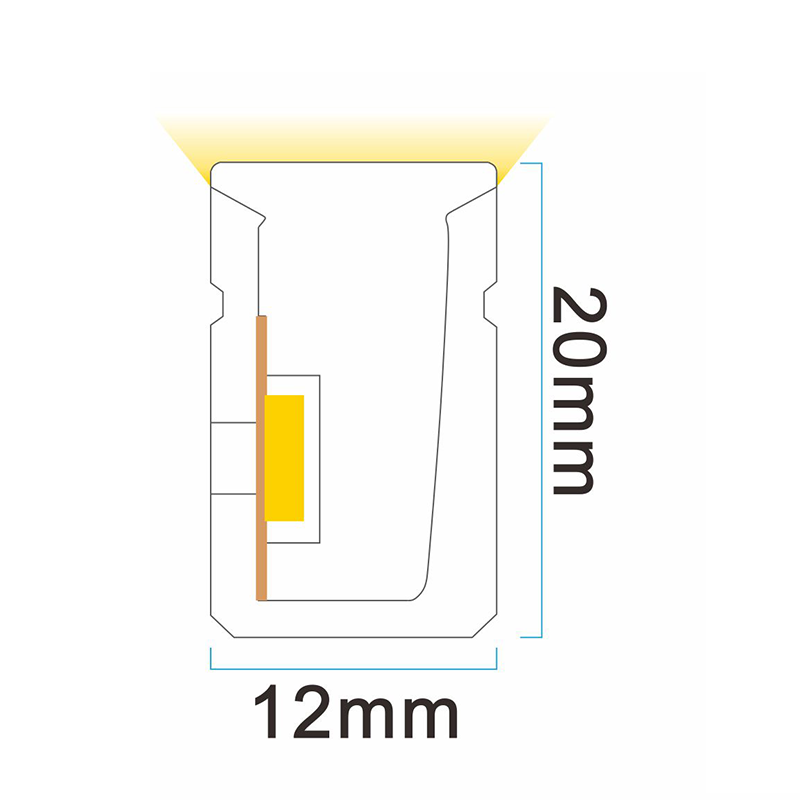

| Model no: | NS1220 |
| Input voltage | 24V DC |
| Power | RGB(12W/m), RGBW(15W/m) |
| IC Qty(UCS512CL) | 8 pixels/m |
| Cut unit length | 125mm |
| Maximum running length | 5meters |
| Lumen per meter | Red | Green | Blue | White |
| RGB | 51 | 191 | 32 | / |
| RGBW | 44 | 119 | 34 | 153 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.

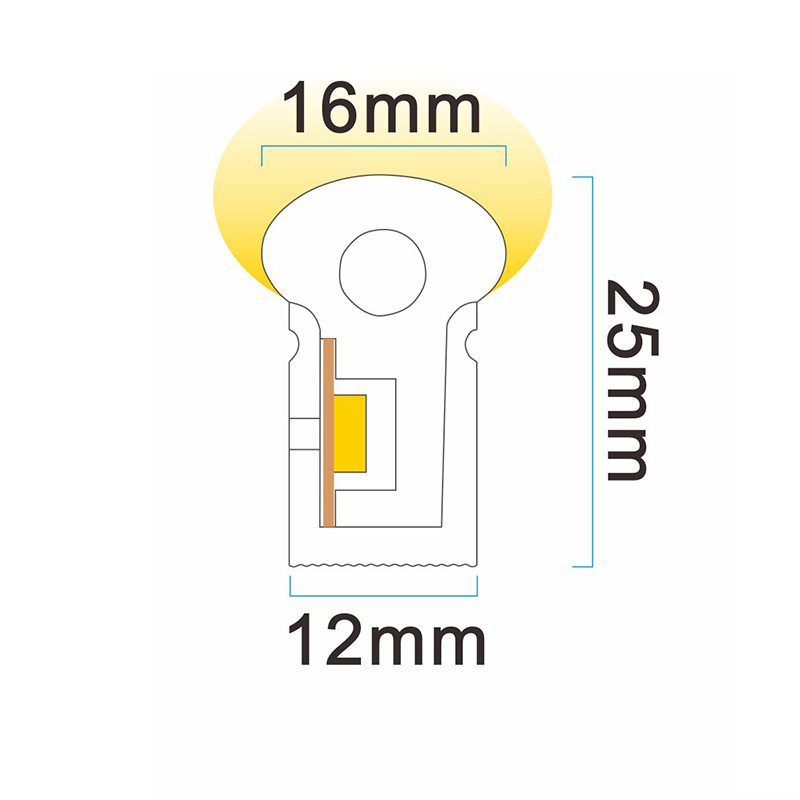

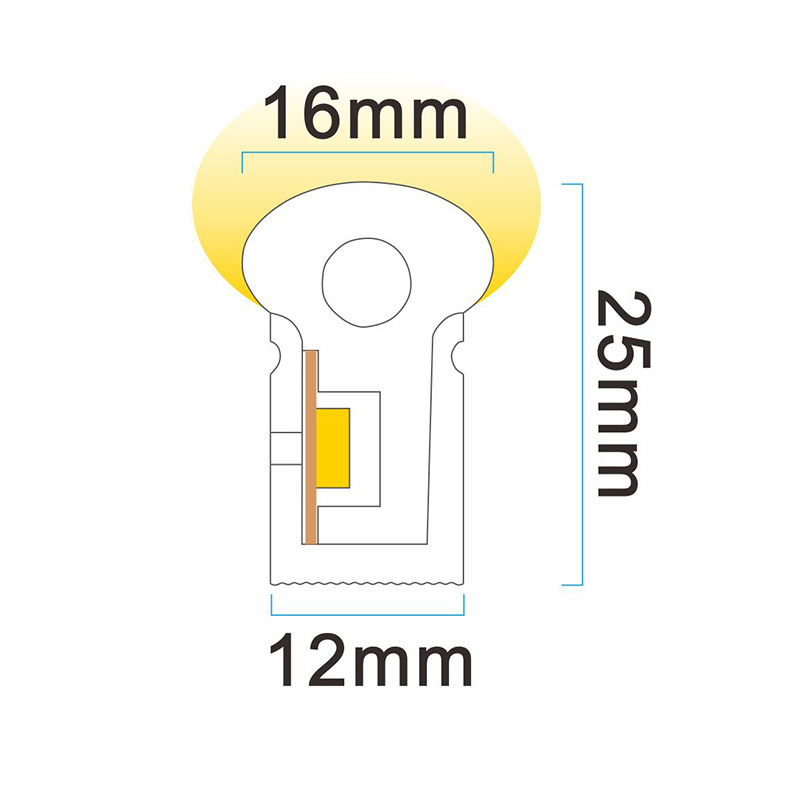

| Model no: | NS1225 |
| Input voltage | 24V DC |
| Power | RGB(12W/m), RGBW(15W/m) |
| IC Qty(UCS512CL) | 8 pixels/m |
| Cut unit length | 125mm |
| Maximum running length | 5meters |
| Lumen per meter | Red | Green | Blue | White |
| RGB | 30 | 115 | 20 | / |
| RGBW | 28 | 80 | 16 | 96 |
Input Voltage: DC24V
IP Rating:IP67
Maxium running length for CV strip is 5 meters.
| Model no: | GN1615 |
| Input voltage | 24V DC |
| Power | RGB(12W/M), RGBW(15W/M) |
| IC Qty(UCS512CL) | 8 pixels/M |
| Cut unit length | 125mm |
| Maximum running length | 5meters |
| Lumen per meter | Red | Green | Blue | White |
| RGB | 51 | 191 | 32 | / |
| RGBW | 44 | 119 | 34 | 153 |

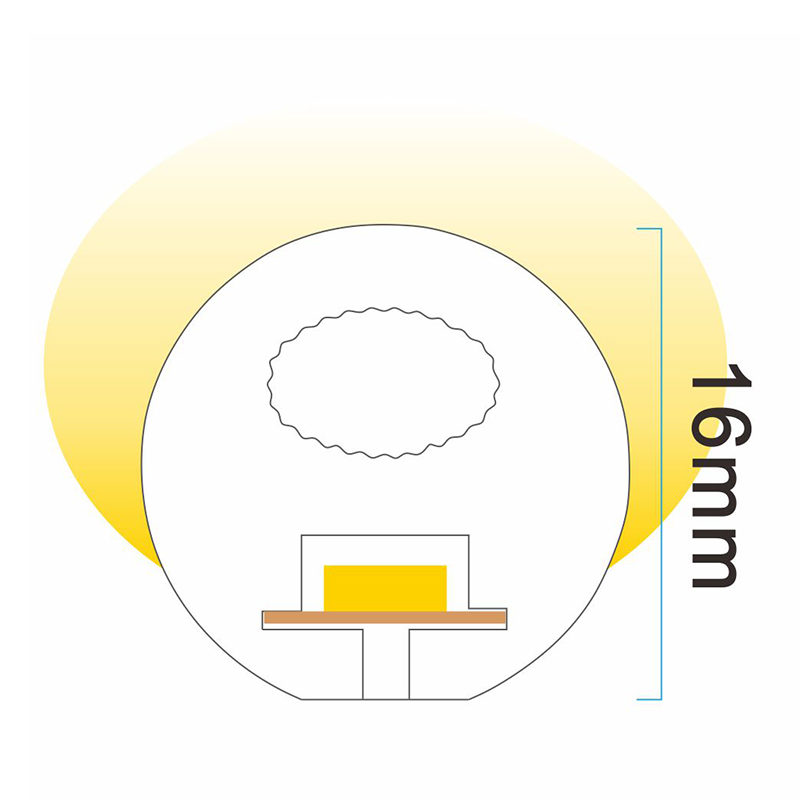

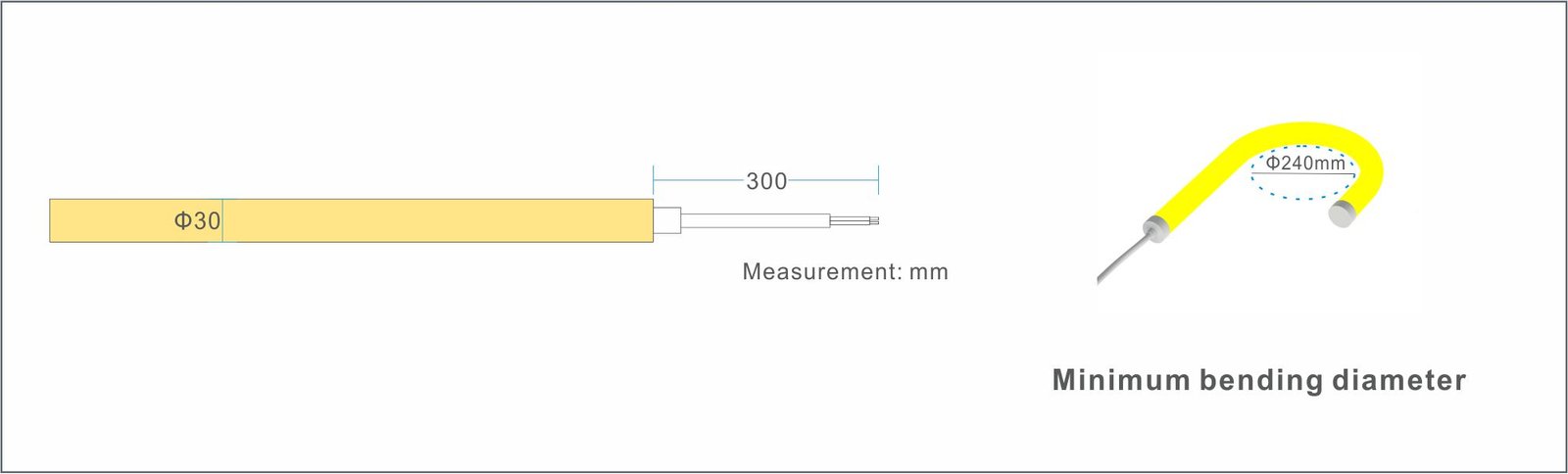

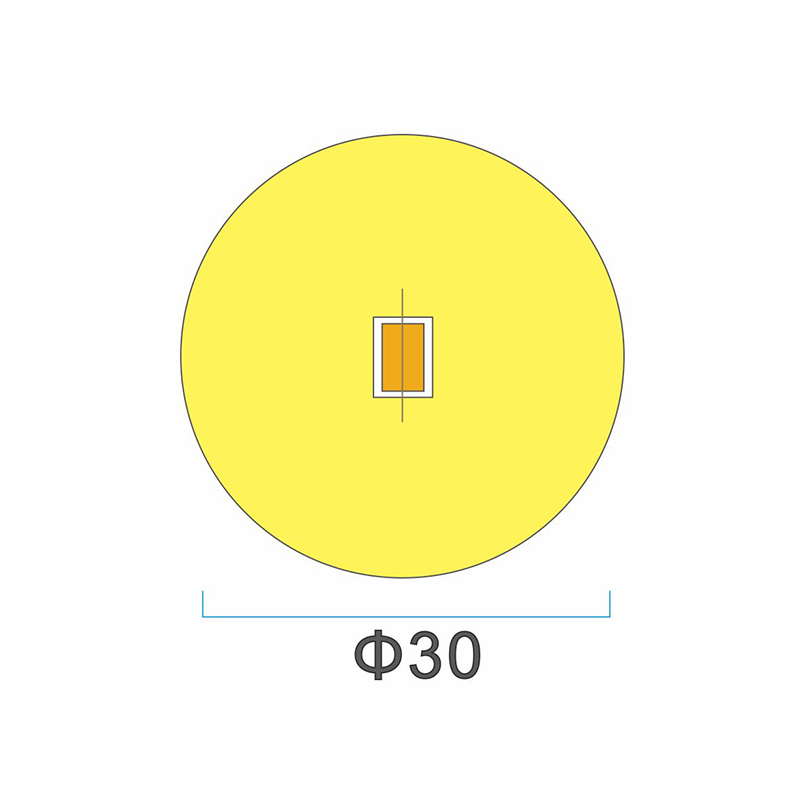

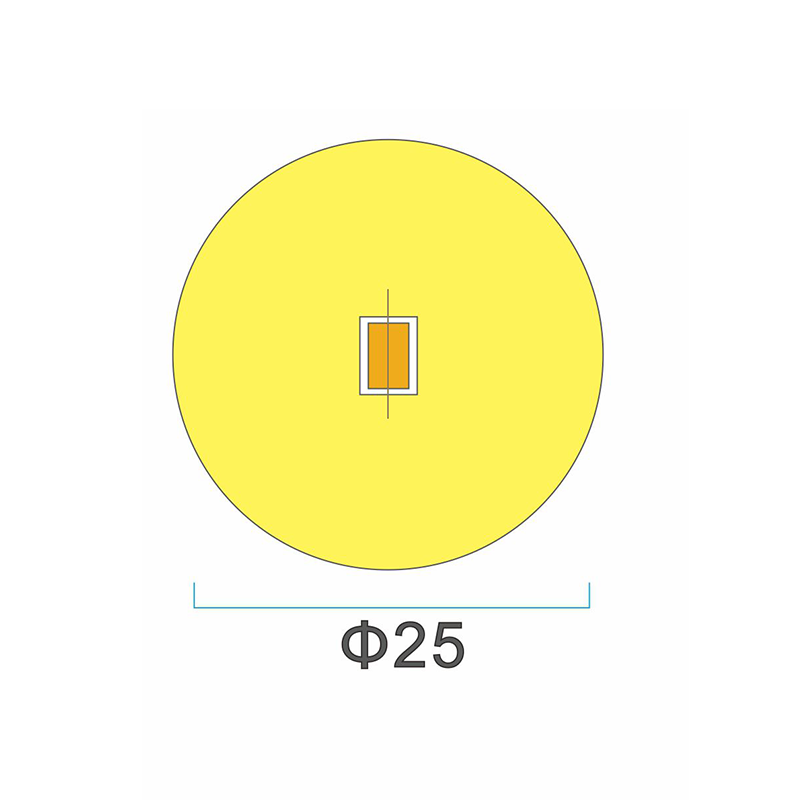

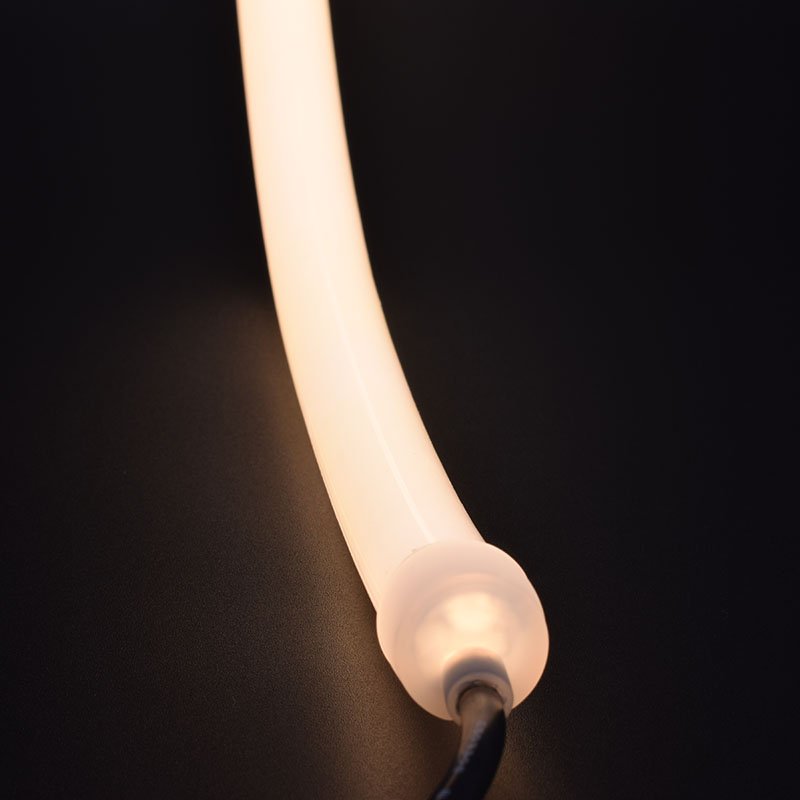

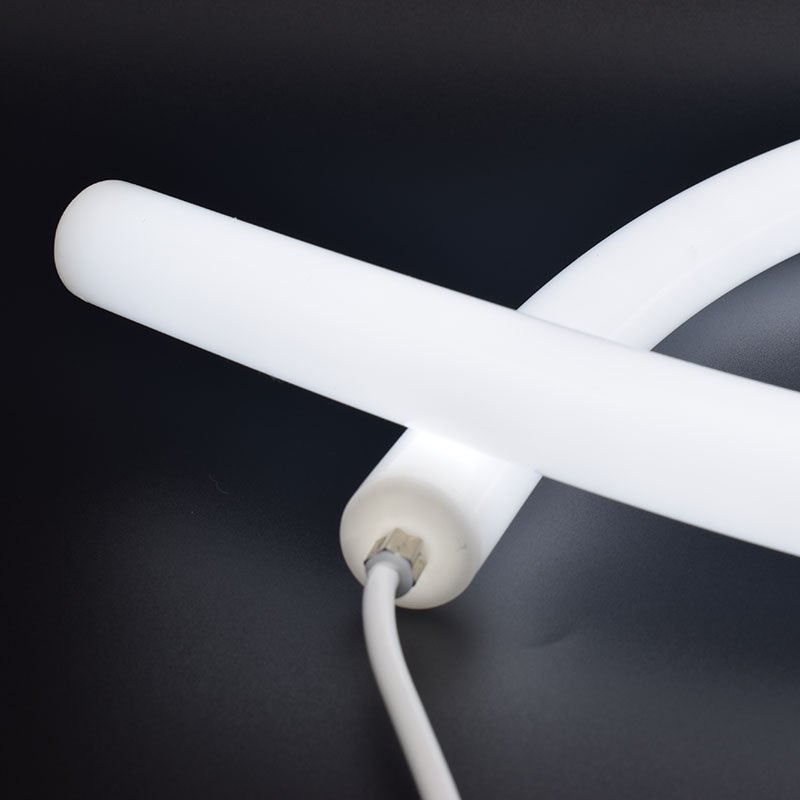

360 View Type
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(8.6watts/m) | Remark |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 518 | |
| Red(620-625nm） | 55 | |
| Green(515-525nm） | 599 | |
| Blue(460-465nm） | 115 | |
| Yellow(585~595nm) | 93 | |
| Orange(605~615nm) | 101 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 338 | 653 |
| Red(620-625nm） | 139 | 305 |
| Green(515-525nm） | 408 | 778 |
| Blue(460-465nm） | 85 | 155 |
| Yellow(585~595nm) | 112 | 235 |
| Pink | 156 | 328 |
| Orange Amber(605~615nm) | 130 | 240 |
| CCT Adjustable | 352 | 726 |
| RGB | 199 | 344 |
| RGBW | 230 | 460 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 19 | 13 |
| Red(620-625nm） | 25 | 17 |
| Green(515-525nm） | 19 | 13 |
| Blue(460-465nm） | 19 | 13 |
| Yellow(585~595nm) | 25 | 17 |
| Pink | 19 | 13 |
| Orange Amber(605~615nm) | 25 | 17 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) | Remark |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 284 | 529 | Standard type |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | / | 800 | High bright type |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 350 | 690 | Free cut type |
| Red(620-625nm） | 114 | 246 | |
| Green(515-525nm） | 289 | 502 | |
| Blue(460-465nm） | 61 | 114 | |
| Yellow(585~595nm) | 97 | 209 | |
| Pink | 210 | 409 | |
| Orange(605~615nm) | 125 | 239 | |
| CCT Adjustable type | 250 | 517 | |
| RGB | 145 | 308 | |
| RGBW | / | 480(16watts/m) |
Input Voltage: DC24V
IP rating:IP67
Maxium running length for CV strip is 5 meters.
| Color/CCT | Lumen(5watts/m) | Lumen(10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K |
276 | 460 |
| Red | 99 | 223 |
| Green | 244 | 423 |
| Blue | 40 | 95 |
| Amber | 88 | 180 |
| Pink | 183 | 356 |
| CCT Adjustable | 259 | 502 |
| RGB | 140 | 290 |

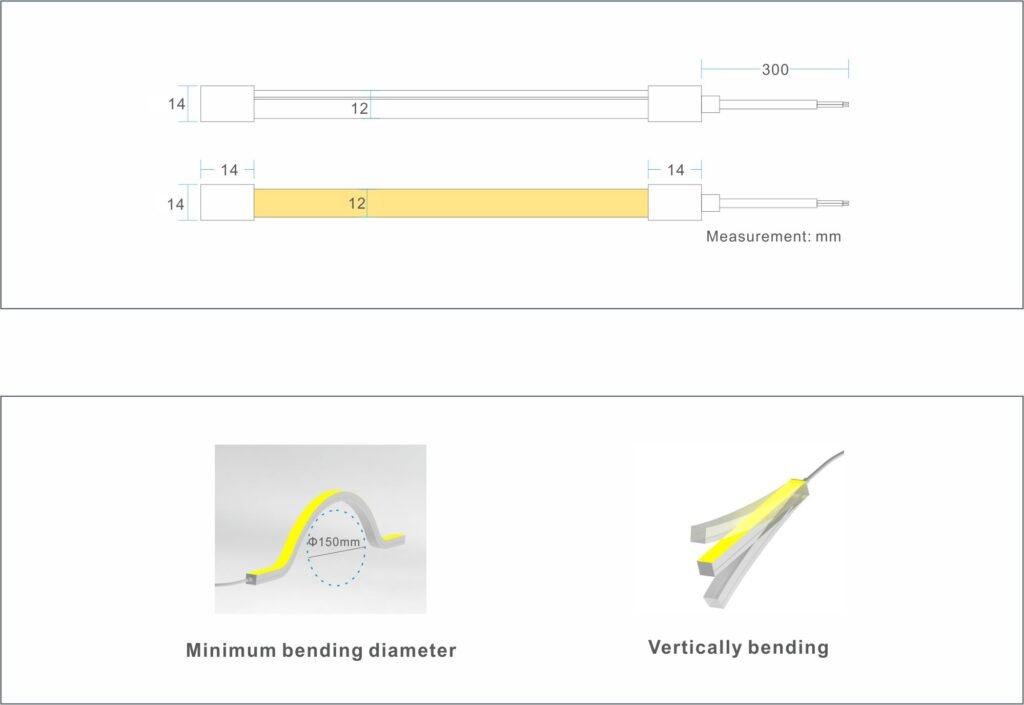

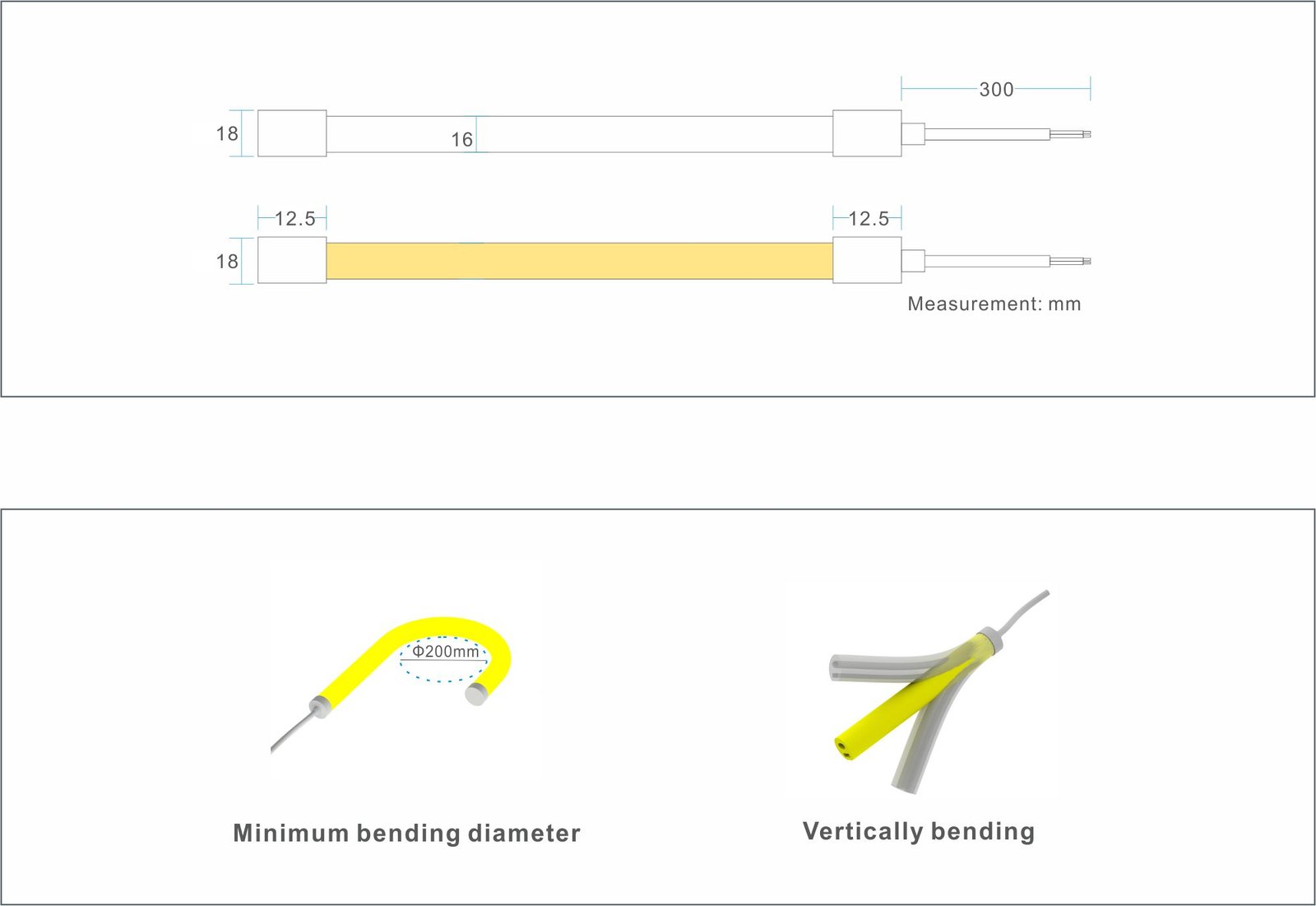

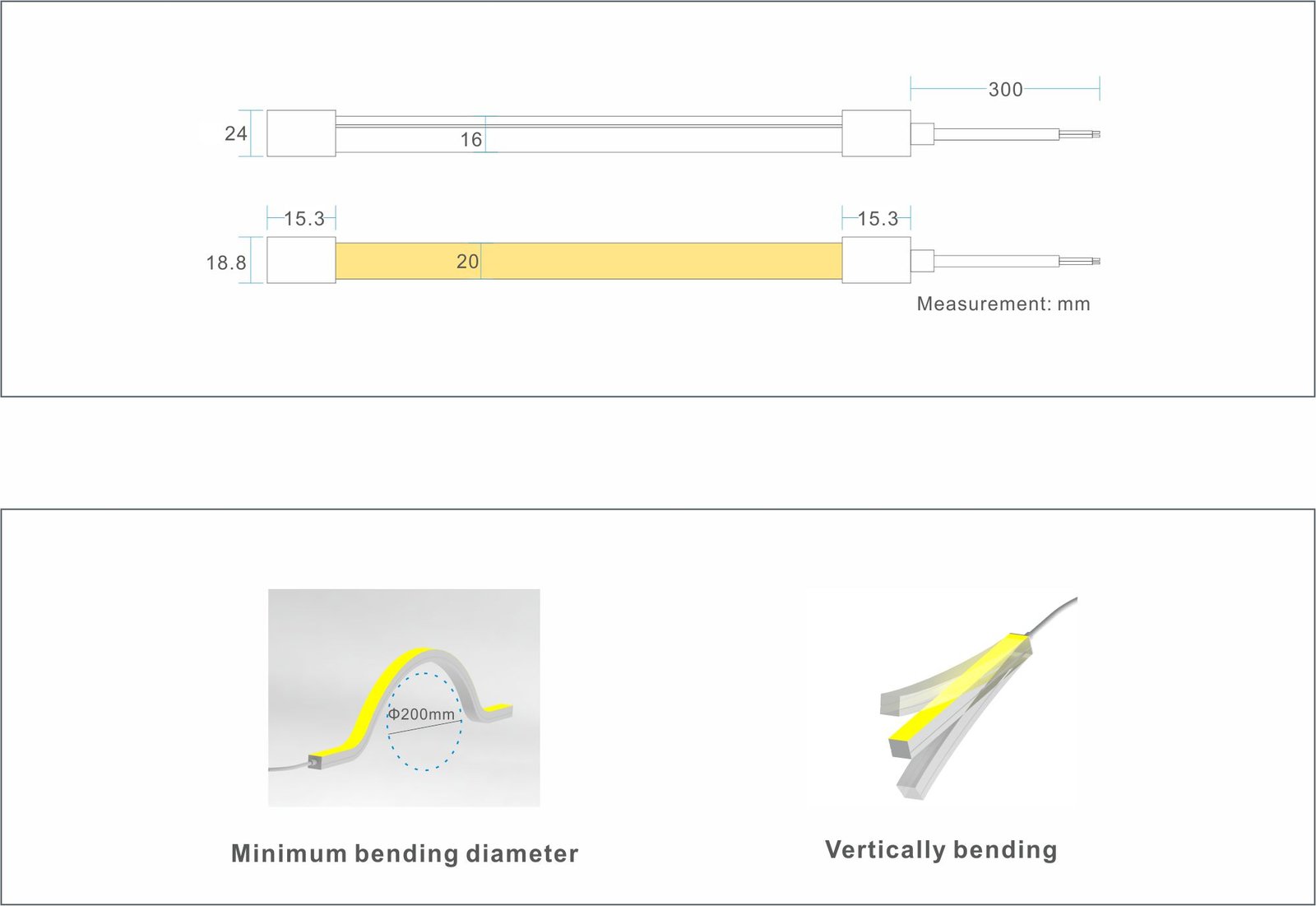

Vertical(Top) Bend Neon Flex
Input Voltage: DC24V
IP rating:IP67
Maxium running length for CV strip is 5 meters.
| Color | Lumen(6.0watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 381 |
| Red(620-630nm） | 160 |
| Green(520-530nm） | 402 |
| Blue(460-470nm） | 6985 |
| Yellow( 580~590nm) | 119 |
| Orange Amber(600~610nm) | 149 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 400 | 720 |
| Red(620-625nm） | 145 | 304 |
| Green(515-525nm） | 411 | 703 |
| Blue(560-465nm） | 77 | 142 |
| Yellow( 585~595nm) | 127 | 268 |
| Pink | 170 | 340 |
| Orange(605~615nm) | 140 | 280 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K(standard) | 329 | 638 |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K(LUX PRO) | 450 | 880 |
| Red(620-625nm） | 132 | 277 |
| Green(515-525nm） | 374 | 703 |
| Blue(560-465nm） | 70 | 129 |
| Yellow( 585~595nm) | 28 | 51 |
| Pink | 143 | 278 |
| Orange Amber(605~615nm) | 175 | 230 |
| CCT Adjustable | 316 | 646 |
| RGB | 174 | 288 |
| RGBW | 210 | 420 |
| Maxium running length for CC Typpe(meter) | Maxium running length (5watts/m) | Maxium running length (10watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K(standard) | 19 | 13 |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K(LUX PRO) | 14 | 8 |
| Red(620-625nm） | 25 | 17 |
| Green(515-525nm） | 19 | 13 |
| Blue(560-465nm） | 19 | 13 |
| Yellow(585~595nm) | 25 | 17 |
| Pink | 19 | 13 |
| Orange Amber (605~615nm) | 25 | 17 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.

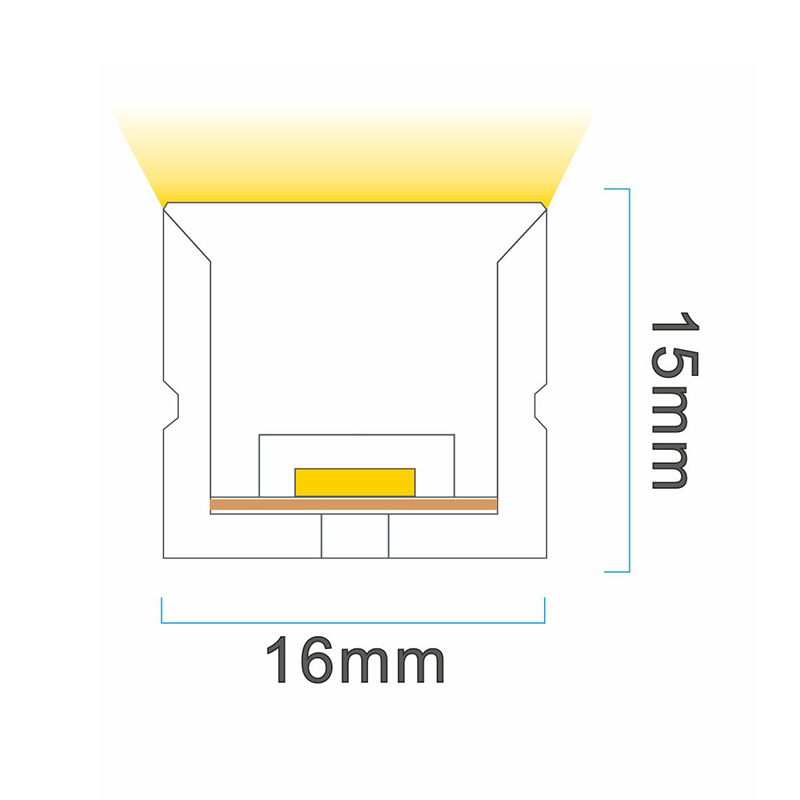

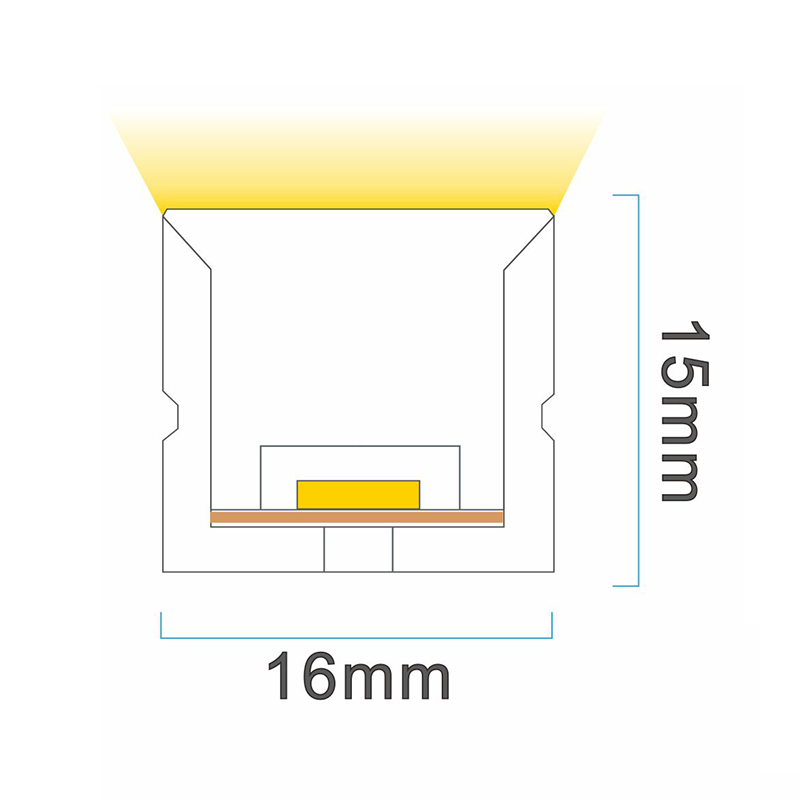

| Model no: | NT1615 |
| Input voltage | 24V DC |
| Power | RGB(12W/m), RGBW(15W/m) |
| IC Qty(UCS512CL) | 8 pixels/m |
| Cut unit length | 125mm |
| Maximum running length | 5meters |
| Lumen per meter | Red | Green | Blue | White |
| RGB | 51 | 191 | 32 | / |
| RGBW | 44 | 119 | 34 | 153 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(5watts/m) | Lumen(10watts/m) | Lumen(15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 309 | 590 | 855 |
| Red(620-625nm） | 155 | 290 | 405 |
| Green(515-525nm） | 315 | 610 | 885 |
| Blue(560-465nm） | 78 | 135 | 172 |
| Yellow( 585~595nm) | 150 | 280 | 390 |
| Pink | 140 | 260 | 340 |
| Orange(605~615nm) | 125 | 230 | 315 |
| CCT Adjustable | 325 | 630 | 915 |
| RGB | 150 | 280 | 390 |
| RGBW | 214 | 408 | 582 |
| Maxium running length for CC Typpe(meter) | Maxium running length (12watts/m) | Maxium running length (16watts/m) | Maxium running length (20watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 27 | 17 | 12 |
| Red(620-625nm） | 35 | 18 | 12 |
| Green(515-525nm） | 27 | 17 | 12 |
| Blue(560-465nm） | 27 | 17 | 12 |
| Yellow(Amber 585~595nm) | 35 | 18 | 12 |
| Pink | 27 | 17 | 12 |
| Orange(605~615nm) | 35 | 18 | 12 |
| RGB | / | 13 | / |
| RGBW | / | / | 10 |
Input Voltage: DC24V
IP rating:IP67
*Maxium running length for CV strip is 5 meters.
| Color | Lumen(16watts/m) | Lumen(20watts/m) | Lumen(24watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 1001 | 1222 | 1439 |
| Red(620-625nm） | 435 | 530 | 618 |
| Green(515-525nm） | 1071 | 1243 | 1445 |
| Blue(560-465nm） | 222 | 268 | 314 |
| Yellow( 585~595nm) | 338 | 352 | 368 |
| Pink | 431 | 519 | 613 |
| Orange Amber(605~615nm) | 432 | 518 | 613 |
| CCT Adjustable | 1008 | 1233 | 1457 |
| RGB | 461 | 536 | 614 |
| RGBW | 607 | 741 | 863 |
| Maxium running length for CC Typpe(meter) | Maxium running length (16watts/m) | Maxium running length (20watts/m) | Maxium running length (24watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K | 11 | 9 | 7 |
| Red(620-625nm） | 11 | 9 | 7 |
| Green(515-525nm） | 11 | 9 | 7 |
| Blue(560-465nm） | 11 | 9 | 7 |
| Yellow(585~595nm) | 11 | 9 | 7 |
| Pink | 11 | 9 | 7 |
| Orange(605~615nm) |
Input Voltage: DC24V
IP rating:IP67
Maxium running length for CV strip is 5 meters.
| Color | Lumen(15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K |
808 |
| Red(620-625nm） | 365 |
| Green(515-525nm） | 974 |
| Blue(560-465nm） | 216 |
| Yellow( 585~595nm) | 292 |
| Pink | 762 |
| Orange Amber(605~615nm) | 370 |
| CCT Adjustable | 794 |
| RGB | 516 |
| RGBW | 506 |
| Maxium running length for CC Typpe(meter) | Maxium running length (15watts/m) |
| 2000K/2400K/2700K 3000K/3500K/4000K 5000K/6500K |
12 |
| Red(620-625nm） | 12 |
| Green(515-525nm） | 12 |
| Blue(560-465nm） | 12 |
| Yellow(Amber 585~595nm) | 12 |
| Pink | 12 |
| Orange(605~615nm) | 12 |
